In the modern automotive industry, the Electronic Throttle Control system (ETC) has largely replaced the traditional mechanical throttle control, marking a significant advancement in engine management technology. This system sends signals from the accelerator pedal to the engine using sensors and wires. It gives better fuel efficiency, smoother driving and more safety. It is also known as drive-by-wire because conventional mechanical linkages are replaced by electronic controls. Let’s find out how it works, its parts, its benefits, common problems and how to maintain it.

What Is Electronic Throttle Control?

The ETC system in modern vehicles regulates engine power without relying on a mechanical cable. In older cars, pressing the accelerator pedal would pull a cable that physically opened the throttle valve. In contrast, in modern cars, the pedal sends an electronic signal to the Engine Control Unit (ECU). The ECU processes this signal and commands a motor in the throttle body to adjust the throttle valve accordingly. This electronic system offers faster response times and greater precision in controlling engine performance.

Main Parts of the Electronic Throttle Control System

A throttle controller makes the car more fuel-efficient

The electronic throttle control system uses several key parts to manage engine air flow. Each part works together to replace the traditional throttle cable with electronic signals

Accelerator Pedal Position Sensor

This sensor is fixed to the accelerator pedal. When you press the pedal, the sensor reads how far it moves. It sends that information as an electric signal to the ECU. It works instantly.

Engine Control Unit (ECU)

The ECU, also known as the car computer, receives the signal from the pedal sensor. It also reads other data like engine temperature, RPM and air flow. Using this information, the ECU determines the optimal throttle opening and sends a command to the motor in the throttle body to adjust the valve accordingly.

Throttle Body with Actuator Motor

The throttle body contains a round valve called a throttle plate. A small electric motor opens or closes this plate and lets air into the engine. The motor follows the ECU’s command.

Throttle Position Sensor (TPS)

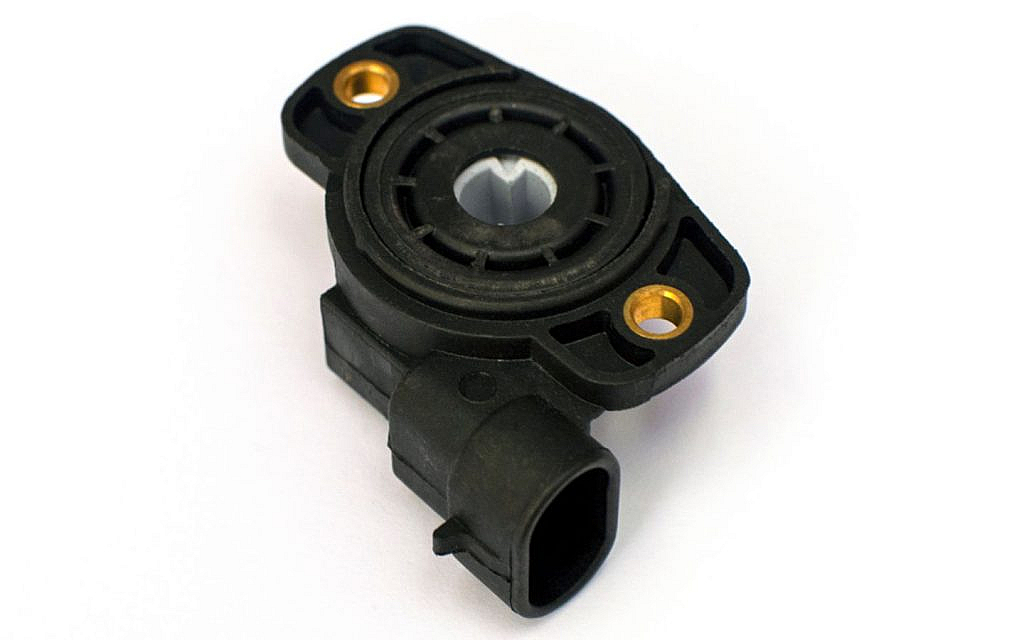

A throttle position sensor helps the ECU determine the air intake ratio

This sensor is located inside the throttle body. It checks the position of the throttle plate. It tells the ECU if the valve is open, closed or stuck. The ECU uses this feedback to adjust or stop the motor.

How Electronic Throttle Control Works

Electronic throttle system functions have a series of digital signals and automatic adjustments. Here is how the system responds when the driver presses the accelerator pedal.

Accelerator Pedal Is Pressed

When the driver presses the accelerator pedal to increase speed, this action initiates the process. Unlike old systems, there is no physical cable being pulled; only the pedal moves.

Pedal Position Sensor Measures Movement

The pedal has a built-in position sensor. This sensor detects how far the pedal is pressed and converts the movement into an electrical signal. The signal includes the exact pedal angle.

Signal Sent to the Engine Control Unit

The electric signal travels through wires to the ECU and it receives the signal immediately.

ECU Processes Data and Calculates Throttle Opening

The ECU checks the data sent by various sensors. It also looks at other data like:

• Engine load
• Engine temperature
• Air intake pressure
• Current RPM

Based on this, the ECU calculates how much to open the throttle valve to give the right amount of air.

ECU Sends Command to Throttle Actuator Motor

The ECU sends a command to the throttle actuator motor inside the throttle body. This motor is responsible for turning the throttle plate.

Throttle Valve Opens Electronically

The actuator motor turns the throttle valve to the angle decided by the ECU. Throttle opening allows more air into the engine.

Throttle Position Sensor Sends Feedback

The TPS is located on the throttle body. It monitors the exact position of the throttle valve. It sends this feedback to the ECU to confirm the valve opened correctly.

ECU Makes Final Adjustments if Needed

The ECU compares the actual valve position with the expected value.

• If the valve is not open enough, the ECU adjusts it.
• If the valve is too open, it sends a correction.

FAQs

What causes electronic throttle control problems?

Most problems come from dirty throttle valves, faulty sensors or wiring issues. Sometimes, the ECU software may also need updates.

Can I clean the throttle body myself?

Yes, you can use a spray to clean the throttle body at home. Remove the air intake pipe. Spray the cleaner while holding the valve open.

What happens if the throttle motor fails?

The throttle will not open properly. The car may go into limp mode or stop responding to pedal input. The throttle control technology requires proper maintenance to work smoothly.

Is ETC used in all modern cars?

Yes. Almost all petrol and hybrid cars made after 2005 use ETC systems instead of cable throttles.

Electronic throttle control is now common in most modern cars. It replaces the old cable system with various types of sensors, a control unit and an electric motor. Knowing how this system works can help you maintain your car and prevent unexpected issues. That said, always consult a trained mechanic if you notice any problems. Follow the car maintenance schedule to ensure the smooth running of other vehicle components.
